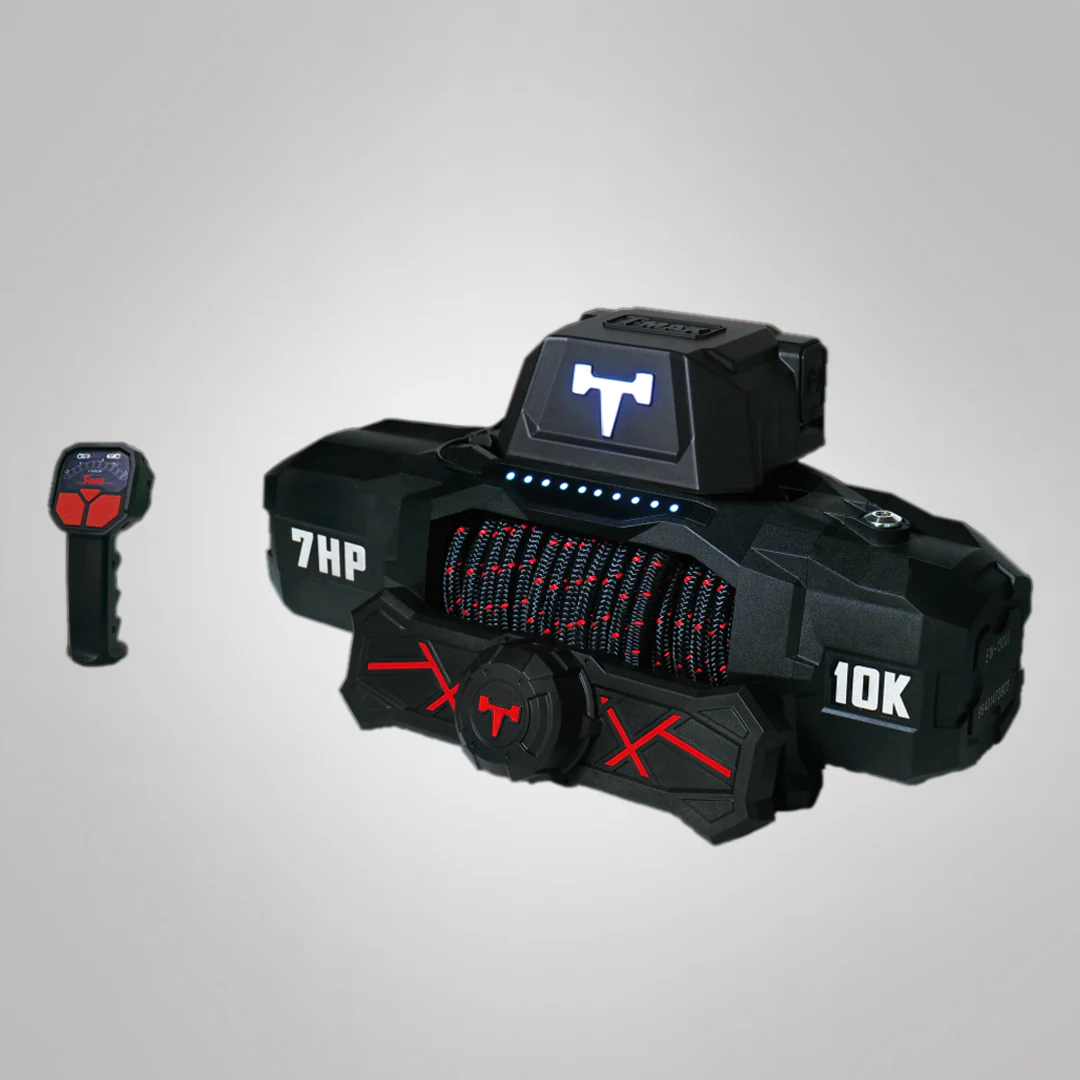

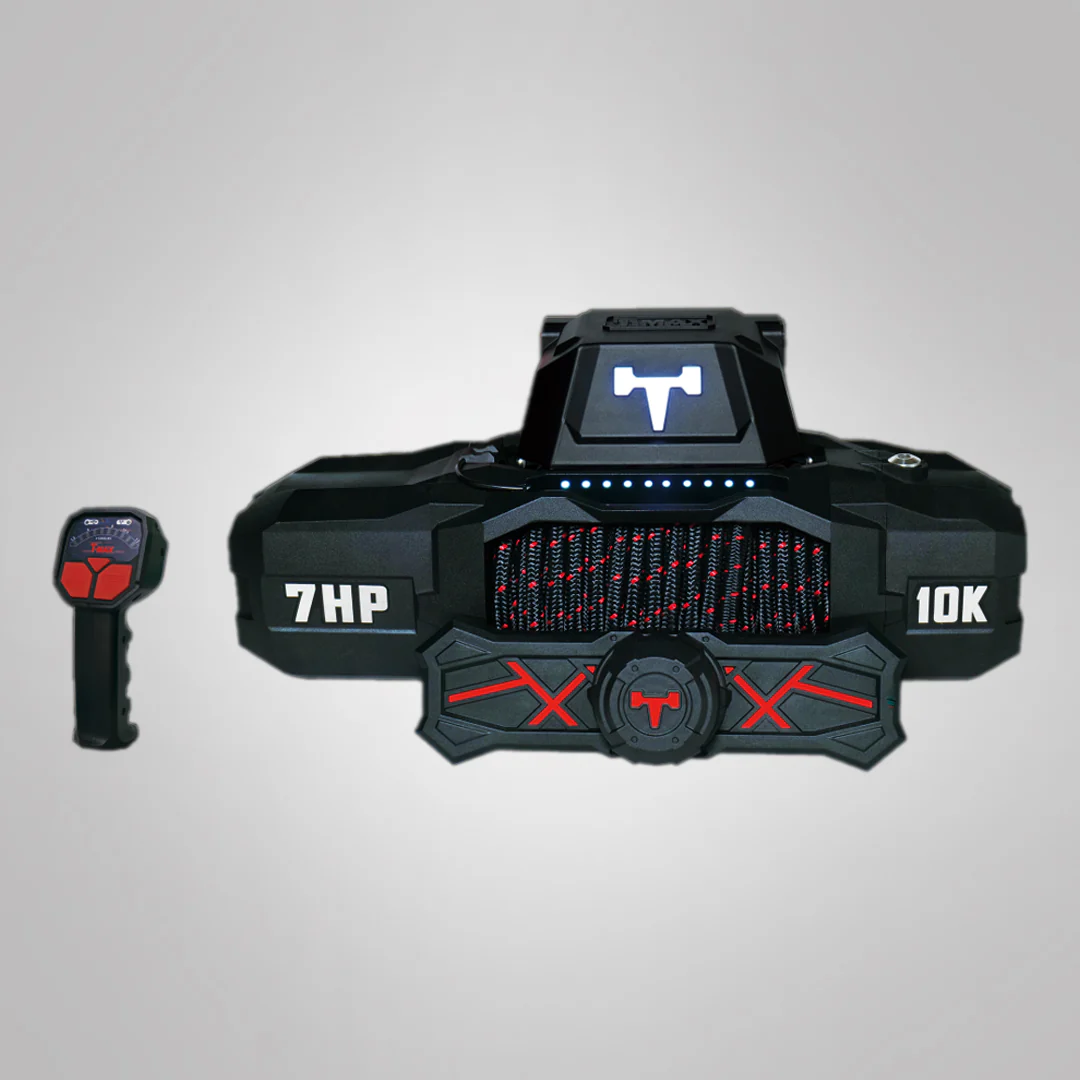

T-MAX Force View Titan Winch 10K
-
10,000 lb pulling capacity – strong enough for 4x4 recovery, trailers, and heavy loads
-
Durable construction – built to withstand tough off-road and worksite conditions
-
Efficient motor & gearing – delivers reliable performance under heavy strain
-
User-friendly controls – designed for easy operation and quick response
-
Versatile mounting options – suitable for a wide range of vehicles and setups
Features & Specifications
|
Single Rated Line Pull |
10,000 lbs (4536KGS) |
|
Motor |
7HP Series Wound |
|
Controller |
12-foot Wired/Remote Switch |
|
Gear Train |
3-Stage Planetary |
| Gear Reduction Ratio | 193:1 |
|
Clutch |
Sliding Ring Gear |
|
Braking |
Automatic in-The-drum |
|
Drum Size |
Dia.2.5''(63.5mm) x Length 9.6''(224mm) |
|
Synthetic Rope (COMP series） |
11mmx28m |
|
Fairlead (COMP Series) |
Aluminum Hawse Fairlead |
|
Remote Control |
Included |
|
Battery |
Recommended 650 CCA |
|
Battery Leads |
1.83m |
|
Net Weight |
73.7lbs, 27kg |
|
Overall Dimensions (LxWXH) |
532x175x178mm |
|
Mounting Bolt Pattern |
254x114.3mm |
