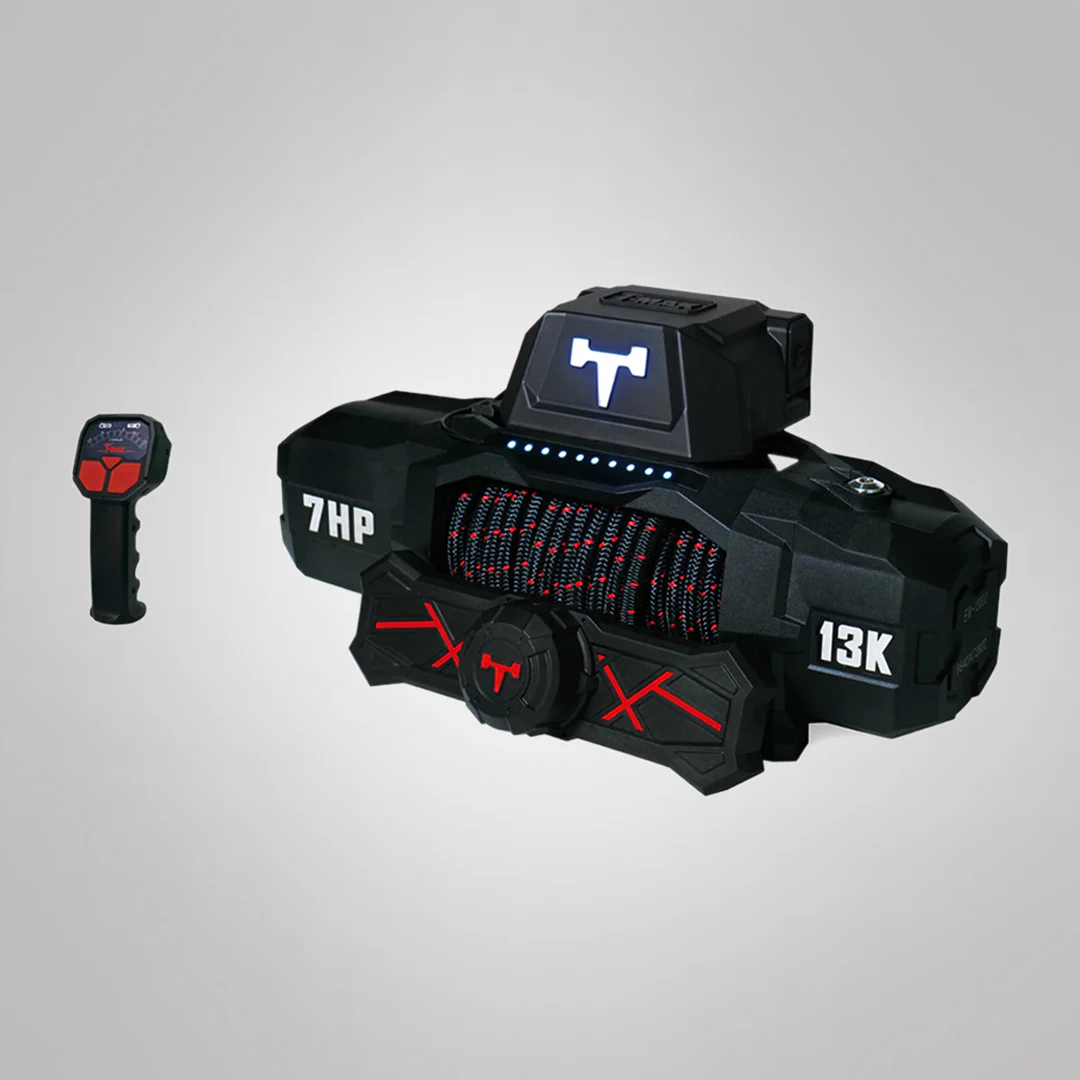

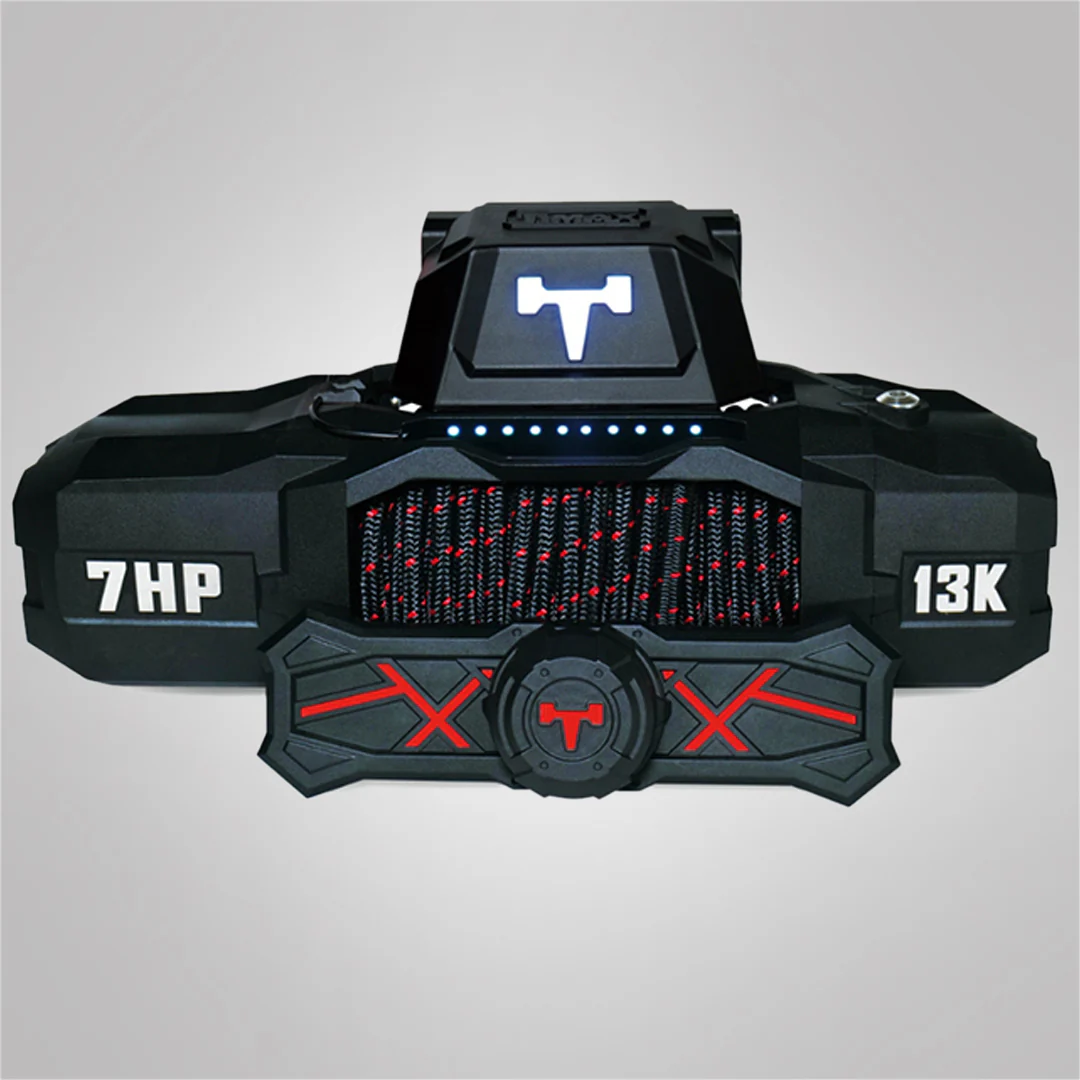

T-MAX Force View Titan Winch 13K
-
13,000 lb pulling power – handles heavier vehicles and demanding recovery tasks
-
Heavy-duty build – engineered for durability in extreme off-road and worksite conditions
-
Reliable motor & gearing – ensures consistent, powerful performance under load
-
User-friendly operation – easy controls for quick, safe, and efficient use
-
Versatile fit – suitable for large 4x4s, trucks, and utility applications
Features & Specifications
|
Single Rated Line Pull |
13,000 lbs (5897KGS) |
|
Motor |
7HP Series Wound |
|
Controller |
12-foot Wired/Remote Switch |
|
Gear Train |
3-Stage Planetary |
| Gear Reduction Ratio | 193:1 |
|
Clutch |
Sliding Ring Gear |
|
Braking |
Automatic in-The-drum |
|
Drum Size |
Dia. 2.5''(63.5mm) x Length 9.6''(224mm) |
|
Synthetic Rope (COMP series） |
12.5mmx28m |
|
Fairlead (COMP Series) |
Aluminum Hawse Fairlead |
|
Remote Control |
Included |
|
Battery |
Recommended 650 CCA |
|
Battery Leads |
1.83m |
|
Net Weight |
78.1lbs, 29.5kg |
|
Overall Dimensions (LxWxH) |
532x175x178mm |
|
Mounting Bolt Pattern |
254x114.3mm |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
-
13,000 lb pulling power – handles heavier vehicles and demanding recovery tasks
-
Heavy-duty build – engineered for durability in extreme off-road and worksite conditions
-
Reliable motor & gearing – ensures consistent, powerful performance under load
-
User-friendly operation – easy controls for quick, safe, and efficient use
-
Versatile fit – suitable for large 4x4s, trucks, and utility applications
Features & Specifications
|
Single Rated Line Pull |
13,000 lbs (5897KGS) |
|
Motor |
7HP Series Wound |
|
Controller |
12-foot Wired/Remote Switch |
|
Gear Train |
3-Stage Planetary |
| Gear Reduction Ratio | 193:1 |
|
Clutch |
Sliding Ring Gear |
|
Braking |
Automatic in-The-drum |
|
Drum Size |
Dia. 2.5''(63.5mm) x Length 9.6''(224mm) |
|
Synthetic Rope (COMP series） |
12.5mmx28m |
|
Fairlead (COMP Series) |
Aluminum Hawse Fairlead |
|
Remote Control |
Included |
|
Battery |
Recommended 650 CCA |
|
Battery Leads |
1.83m |
|
Net Weight |
78.1lbs, 29.5kg |
|
Overall Dimensions (LxWxH) |
532x175x178mm |
|
Mounting Bolt Pattern |
254x114.3mm |
